FAAC

At A & K Doors we have a great range of FAAC Gate Openers. If you need help choosing which FAAC Gate Openers will best suite your needs, Call us today on 0417 456 100 for a FREE quote!

Swinging Gate Openers

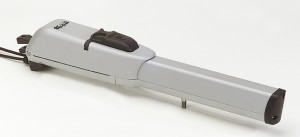

413

230V Electromechanical operator

• Max width single leaf 1.8 – 2.5 m
• Use frequency S3 – 30%

‘Out of axis’ thrust operator
Integrated opening and closing mechanical stops (no need to install limit switch mechanical stops).
Die-cast aluminium body, entirely double-coat painted for longer duration
Manual release device with simplified key-protected activation
Horizontal cable outlet to allow installation near the ground (low installation)

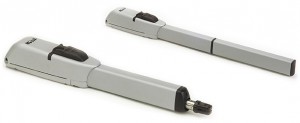

415 230V

230V Electromechanical operator

• Max width single leaf 2.5 – 4 m
• Use frequency S3 – 30%

‘In axis’ thrust operator
Versions with rod travel of 300 mm (max 3 m leaf) and 400 mm (max 4 m leaf) available
Die-cast aluminium body, entirely double-coat painted for longer duration
Manual release device with simplified key-protected activation
Horizontal cable outlet to allow installation near the ground (low installation)

415 24V

24V Electomechanical operator

• Max width single leaf 2.5 – 4 m
• Use frequency Continuous use

‘In axis’ thrust operator
Versions with rod travel of 300 mm (max 3 m leaf) and 400 mm (max 4 m leaf) available
Die-cast aluminium body, entirely double-coat painted for longer duration
Manual release device with simplified key-protected activation
Horizontal cable outlet to allow installation near the ground (low installation)
Emergency battery for operation in case of a power cut (optional)
